The Development of de-inkable, recyclable mono-material PE-pouch with barrier properties

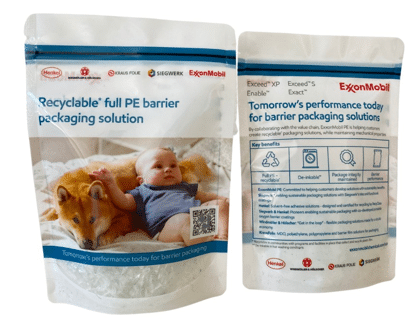

In a breakthrough development, a fully recyclable mono-material PE pouch has been created that has similar properties to barely recyclable multi-material laminated pouches.

The new pouches utilize the latest polymers, inks, functional coatings, adhesives and conversion technology and were the product of a unique value chain collaboration of ExxonMobil, Henkel, Kraus Folie, Siegwerk and Windmöller & Hölscher.

The innovation allows for pouches that provide a high oxygen barrier, outstanding package integrity and excellent shelf-appeal, and produces an almost colorless recyclate after the removal of printing ink and the oxygen-barrier coating layer.

Delamination and deinking

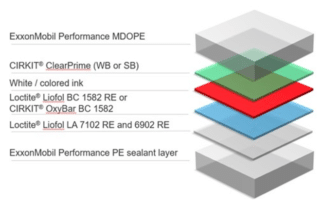

In order to produce a colourless recyclate, the delamination and removal of the printing ink and coating from the laminate structure is crucial. To this end, Siegwerk´s delamination/deinking primer technology was applied on a Windmöller & Hölscher Miraflex II flexo printing press with a downstream unit.

Depending on the requirements either solvent- (SB) or water-based (WB) primer from Siegwerk´s Cirkit ClearPrime product range are available. Applying industrial hot-washing conditions enables delamination and deinking of the pouch, giving an almost colourless recyclate.

High oxygen barrier

Excellent oxygen barrier properties had been achieved through the use of Loctite Liofol BC 1582 RE, a recently introduced 1-component barrier coating from Henkel, and Cirkit OxyBar BC 1582 from Siegwerk. The coating can be applied on both flexo and gravure presses at industrial machine speeds on various substrates, giving very high transparency. Its compatibility with recycling has been confirmed by Cyclos HTP and it also meets Critical Guidance by American Plastic Recyclers (APR). To match these requirements, appropriate coloured and white inks from Siegwerk were used.

Laminating adhesive

To improve recyclability, the partners used Henkel’s new solvent-free, 2-component polyurethane laminating adhesive, Loctite Liofol LA 7102 RE / 6902 RE. The system has been designed for mono-material structures and been recognized for its compatibility with recycling as certified by RecyClass.

Package integrity

Outstanding packaging integrity is achieved using ExxonMobil’s latest generation of performance polyethylene such as Exceed S and Exceed XP, in combination with Exact materials in the sealant layer. The MDO-PE films had been developed by ExxonMobil and Kraus Folie, employing ExxonMobil HDPE and Enable performance polyethylene, and produced on their Varex II extrusion line with inline MDO unit.

Shelf appeal

High primer transparency combined with consistent print quality and the inherent gloss of the ExxonMobil PE-based MDO film helps to deliver an excellent shelf appeal of the final pouch. Deinking primer, print image and barrier coating had been applied in one step using a Windmöller & Hölscher Miraflex II with a downstream unit.
