SOPRIN: DotScope 2D measurement of a gravure cross screen
Gravure cylinder measurement: Fantastic new features
von Ansgar Wessendorf,

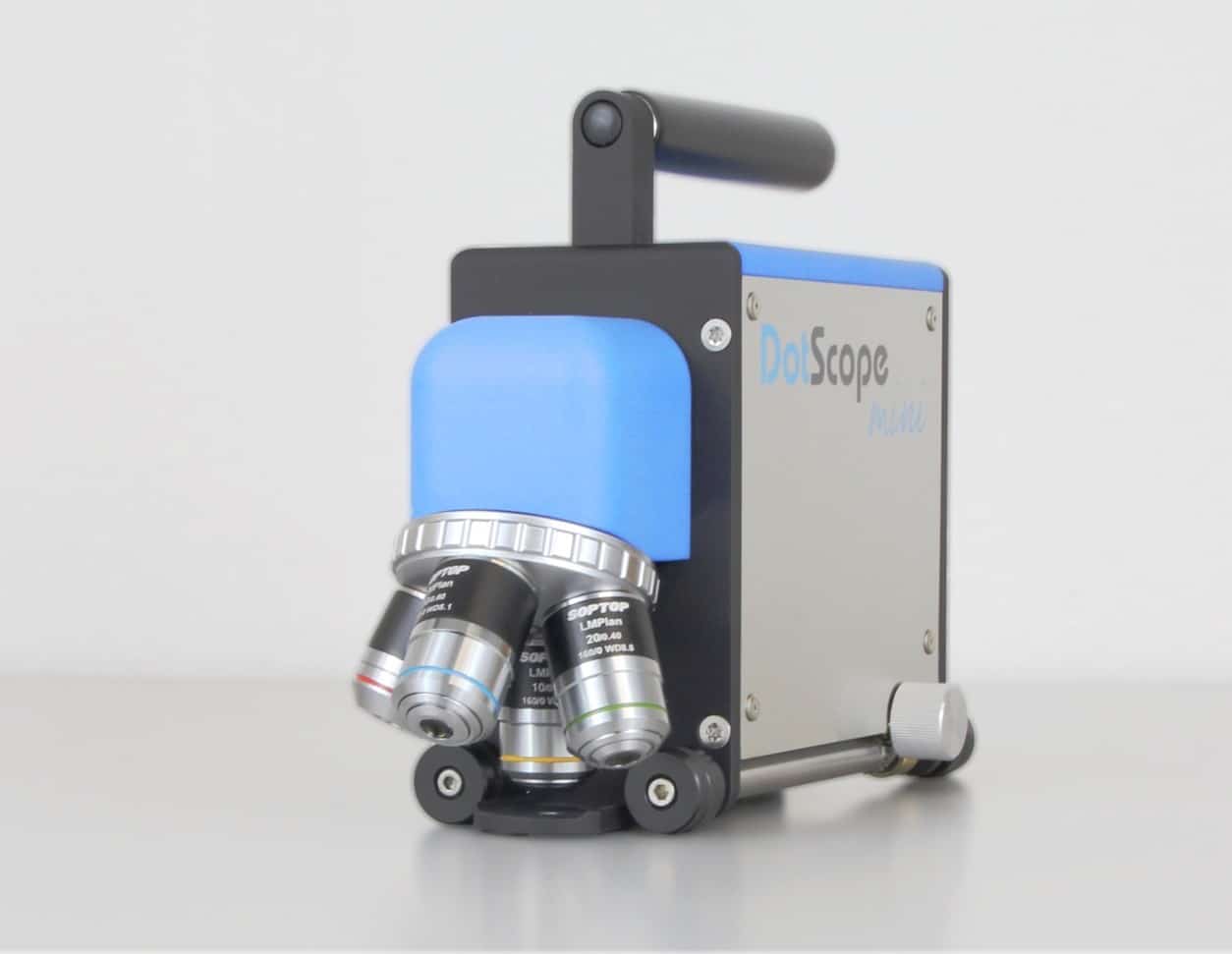

SOPRIN GmbH produces highly mobile measuring microscopes for analysing gravure cylinders, anilox rollers and flexo plates
(Source: SOPRIN)
After becoming the industry standard for measuring gravure cylinders, DotScope has now expanded its capabilities with a range of new 2D functions. The latest updates to DotScope for gravure printing measurements are here.
The measurement of stylus engravings has been extended to include automatic measurement of wall width, cell area and surface percentage (dot%). Cross-screen engravings are now fully supported. Both diagonals, wall width, wall/cell ratio, screen count, screen angle, cell area and surface percentage (dot%) are automatically determined. The z-scan is now even more sensitive and works with improved artefact suppression, allowing for sub-micron accuracy even at lower magnification and a correspondingly larger field of view.

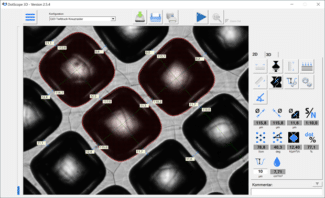

DotScope 2D measurement of a gravure cross screen (Source: DotScope)
Experience precision with DotScope – flawless measurements on any surface!
SOPRIN GmbH produces highly mobile measuring microscopes for analysing gravure cylinders, anilox rollers and flexo plates. The DotScope mini and the DotScope eco have been successful on the market for several years and have developed into technically leading measuring devices through continuous further development and have won many enthusiastic users.
The measurements are extremely precise thanks to the plane optics and sophisticated software. The DotScopes are characterised by maximum mobility with low weight, efficient workflow, fast objective lens changes thanks to the lens turret and serial measurement. Highly flexible data output to various report layouts and databases is possible. The measuring microscopes are easy to operate and ideal for use in production and quality control.
The DotScope series offers further advantages in use: using a DotScope gives the user a higher degree of control over their process. Using the microscope reduces set-up times, increases productivity, improves quality and therefore increases the company’s profitability.
